Display Shelf Panel Roll Forming Machine

Brand:KONIX
Payment:T/T
Product Origin:Guangdong, China
Color:Customized
Shipping Port:Huangpu, China
Lead Time:90 Days

PRODUCTION FLOW
  • Steel Coil –> Straightening Machine –> Punching Machine –> Roll Forming Machine –>  Hydraulic Cut Off –> Run Out Table –> Finished product–> PLC Control
shelf panel roll forming machine
layout of shelf panel roll forming machine
DECOILER
  • With prevent frame
  • Coils outer diameters        1600mm
  • Coils inner diameters        460-520mm
  • Coils width                500mm
  • Coils weight               3000kgs
  • Manual way to tighten the coils
  • With manual brake device

supermarket dispaly shelf panel roll forming machine

LEVELING MACHINE
  • Feeding material width       400mm
  • Feeding material thickness    0 mm
  • Rollers quantity             11pcs
  • Roller material              GCr 15steel
  • Heat treatment hardness      HRC55°-57°
  • Motor power                3 KW
  • Transmitt by chain and gear

leveler for supermarket shelf panel making machine

MATERIAL FEEDER
  • Feeder material width           400mm
  • Feeder material thickness        2.5mm
  • Rollers quantity                4pcs
  • Roller material                 GCr15steel
  • Roller heat treatment hardness   HRC55-57
  • Servo motor power             1.8KW
  • Transmitt by gear
POWER PRESS
  • Working pressure              80Ton(air clutch )
  • Working times                 60times/min
  • Punching moulds               3 sets (90mm, 100mm, 120mm)

power press

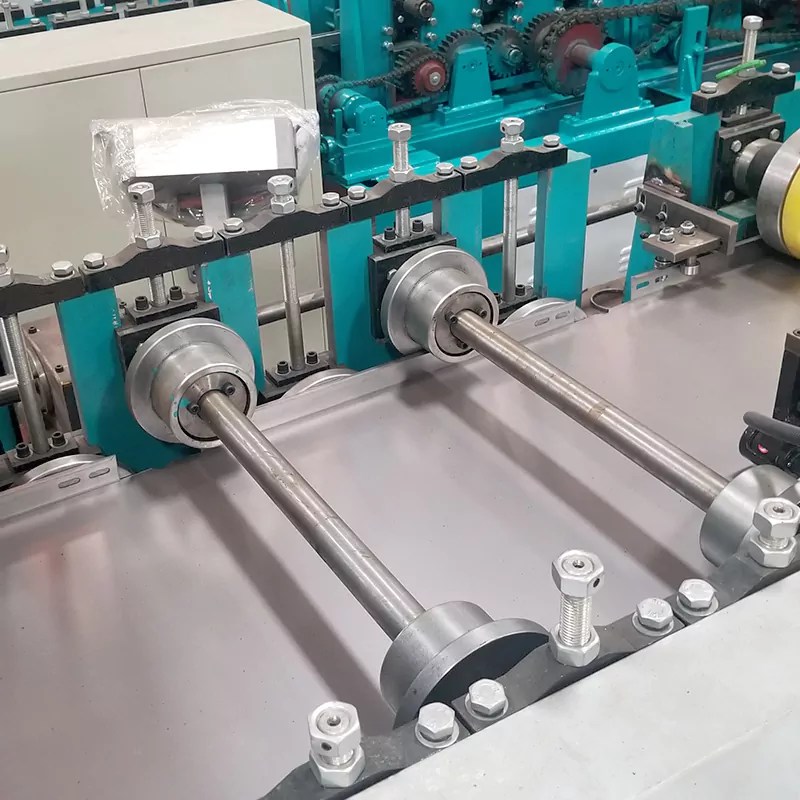

MAIN ROLL FORMING MACHINE
  • Adjusting the width by spacer.
  • Material thickness         1.8-2.5mm
  • Rollersstation            24 groups
  • Straightening roller        5 pcs
  • Roller material            GCr15
  • Roller heat treatment       HRC55-57°
  • Roller’s surface finishing poilish treatment
  • Roller main shaft diameter  60mm , material : 45# steel
  • Roller’s axis              60310
  • Pinch wall thickness        30mm
  • Transmitt way             gear and chain
  • Motor and speed reducer  5 kw x 3sets
  • Equip with water cooling system

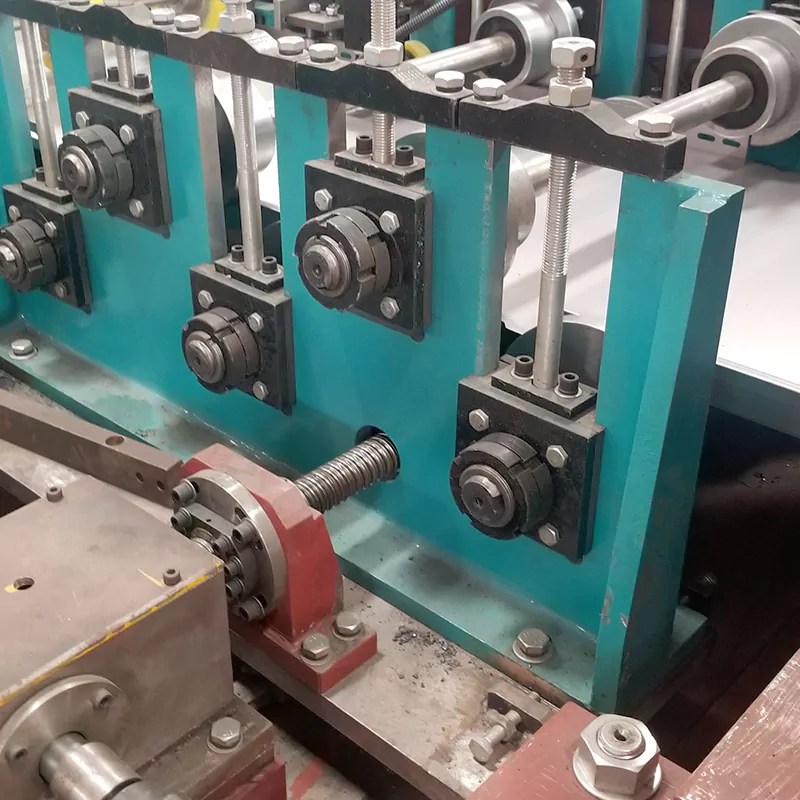

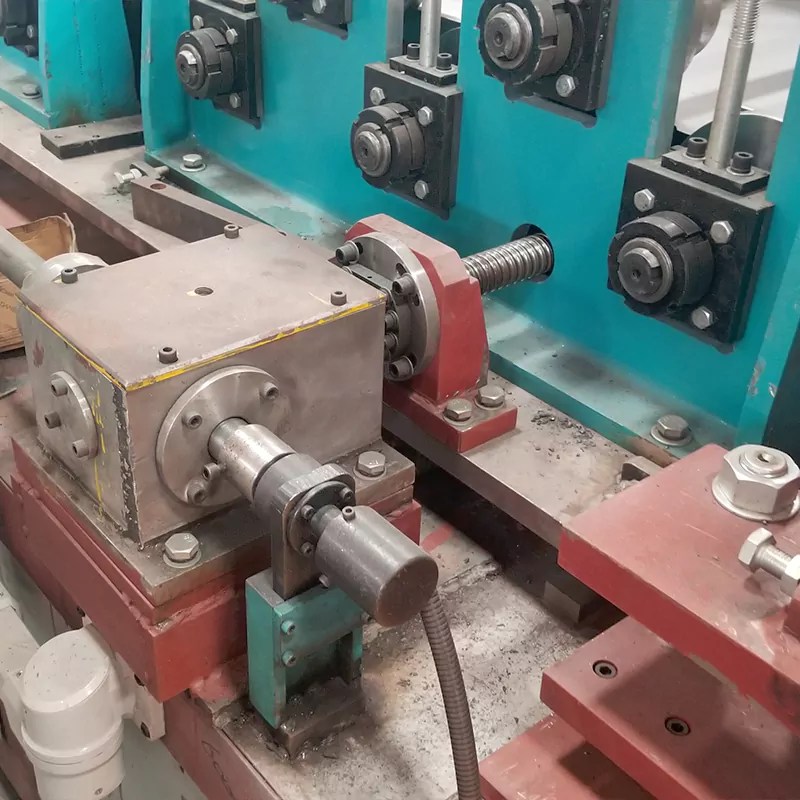

shelf panel roll forming machine for sale

automatically adjustable shelving panel roll forming machine automatically adjustable shelf panel roll forming machine

automatically adjustable shelving panel roll forming machine automatically adjustable shelving panel roll forming machine for supermarket shelves

HYDRAULIC CUT OFF
  • Hydraulic station              1 set
  • Hydraulic station motor         4 kw
  • Cut off mould                 4sets
  • Cutting mold material          SKD11
  • Treatment hardness            HRC60°-62°
  • The machine stop , then cut

konix shelf panel roll forming machine

RUN OUT OF TABLE
  • Length                     6 meters
  • weld byangle steel
  • Pneumetic discharge

run out table for shelf panel roll former

CONTROL SYSTEMS
  • Control system PLC, Touchable Screen (good quality brand)
  • Electric parts ain electric parts adopt to good quality brand.
  • Length setting by PLC, messuring by encoder
  • Speeding adjusting by Transducer.
  • The machine stop , then cut
  • Power: Customized

roll former machine

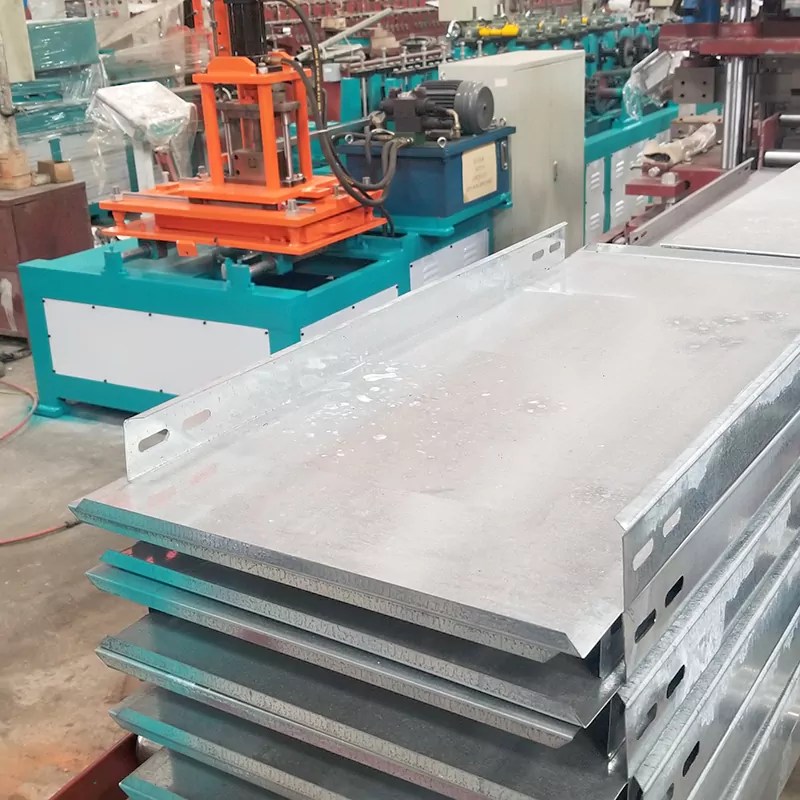

Finished Product:

shelf panel

shelf panel back plane perforating back panel roll former
