Door Frame Roll Forming Machine

Brand:KONIX
Payment:T/T
Product Origin:Guangdong, China
Color:Customized
Shipping Port:Huangpu, China
Lead Time:90 Days

Door Frame Roll Forming Machine

SPECIFICATION:

  • Suitable material            Carbon Steel, Stainless Steel
  • Material Thickness           9~1.6mm
  • Profile size90x50mm
  • Complete line working speed   1~20m/min



PRODUCTION FLOW

  • Steel Coil –>Hydraulic Punching –> Roll Forming Machine –> Hydraulic Cut Off –> Run Out Table –> Finished Door Frame



DECOILER

  • Coils outer diameters        1400mm
  • Coils inner diameters        460-520mm
  • Coils width                500mm
  • Coils weight               3000kgs
  • Manual way to tighten the coils

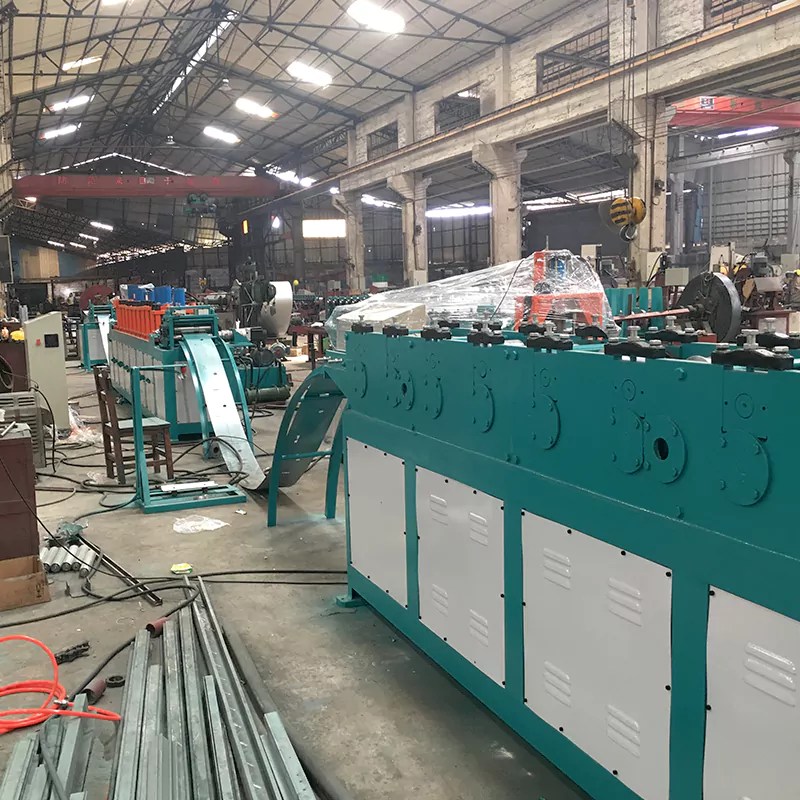

ROLL FORMING MACHINE

  • Rollersstation            26 groups
  • Roller material            Gr15
  • Roller heat treatment       HRC55-57°
  • Roller’s surface finishing poilish treatmentand chrome plate.
  • Roller main shaft diameter  55mm , material : 45# steel
  • Transmitt way             gear and chain
  • Wall plate thickness        25mm
  • Bearing                  60309
  • Motor and speed reducer   5KW x2sets, speed reducer x 2 sets
  • Equiped with water cooling system.

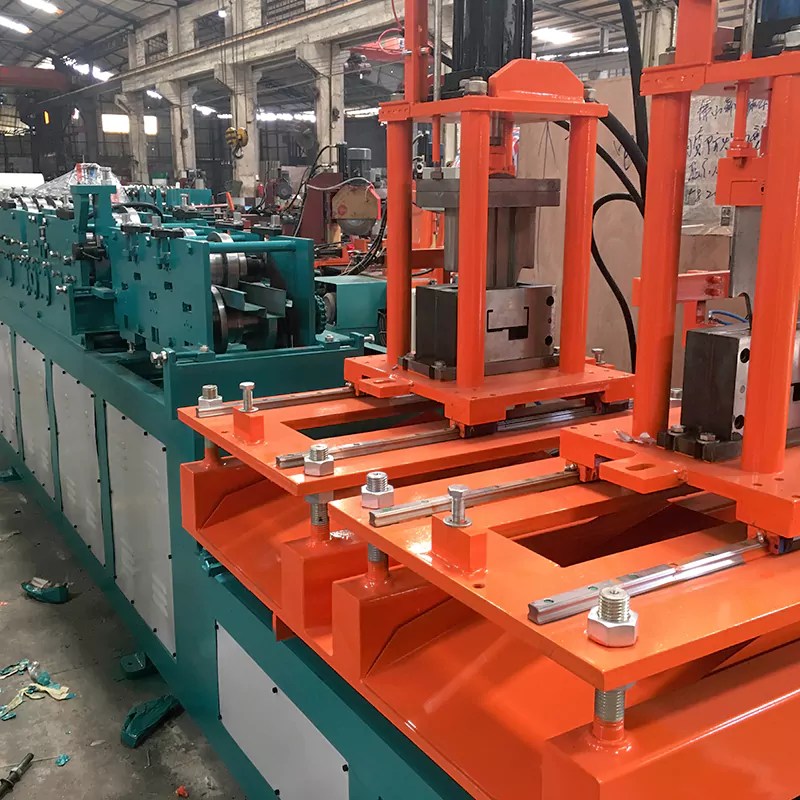

HYDRAULIC CUT OFF

  • Hydraulic station             1 set
  • Hydraulic station motor        4 kw

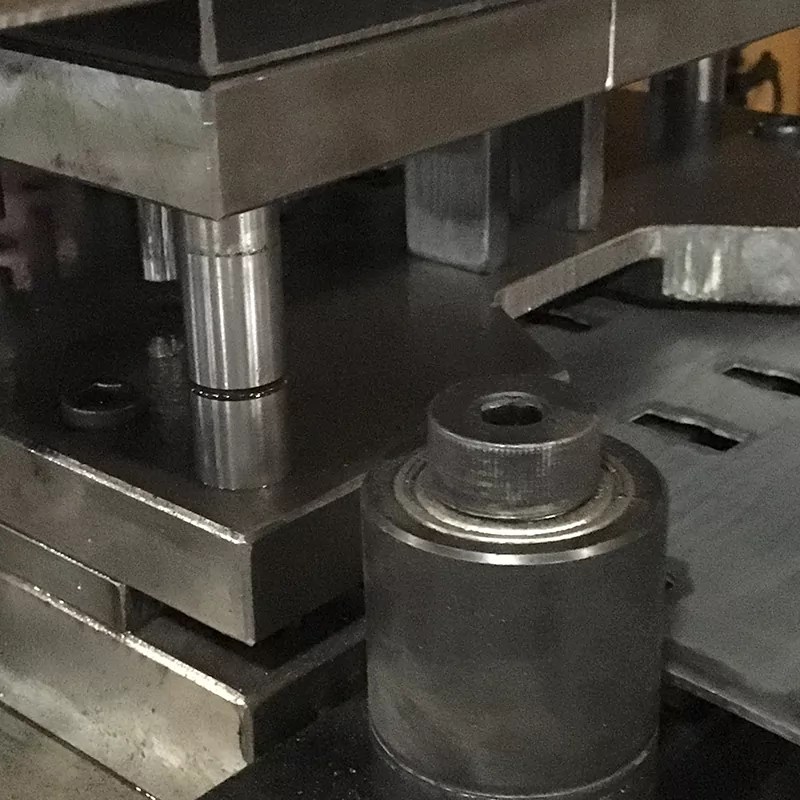

  • Cut offmould                1 set  ( with the material waste way )
  • Cutting mould material         Gr12MOVsteel
  • Treatment hardness            HRC57°-59°
  • The machine stop , then cut



RUN OUT OF TABLE

  • Length                     6 meters
  • welding byangle steel
  • Pneumetic discharge



CONTROL SYSTEMS

  • PLC and touchable screen
  • Length setting by
  • Electric parts : Main electric parts are good quality brand.
