Drive In Pallet Rack Roll Forming Machine

• PECIFICATION:
• Suitable material            HCR Coil / Carbon Steel Coil, GI Coil
• Material Thickness           8~2.5mm
• Profile                     90/100/120*70mm
• Complete line working speed   2~5m/min
• PRODUCTION FLOW
• Steel Coil –> Straightening Machine –> Punching Machine –> Roll Forming Machine –>  Hydraulic Cut Off –> Run Out Table –> Finished product–> PLC Control

DECOILER

• With prevent frame
• Coils outer diameters        1600mm
• Coils inner diameters        460-520mm
• Coils width                500mm
• Coils weight               3000kgs
• Manual way to tighten the coils
• With manual brake device

LEVELING MACHINE

• Feeding material width       400mm
• Feeding material thickness    0 mm
• Rollers quantity             11pcs
• Roller material              GCr 15steel
• Heat treatment hardness      HRC55°-57°
• Motor power                3 KW
• Transmitt by chain and gear

MATERIAL FEEDER

• Feeder material width           400mm
• Feeder material thickness        2.5mm
• Rollers quantity                4pcs
• Roller material                 GCr15steel
• Roller heat treatment hardness   HRC55-57
• Servo motor power             1.8KW
• Transmitt by gear

POWER PRESS

• Working pressure              80Ton(air clutch )
• Working times                 60times/min
• Punching moulds               3 sets (90mm, 100mm, 120mm)

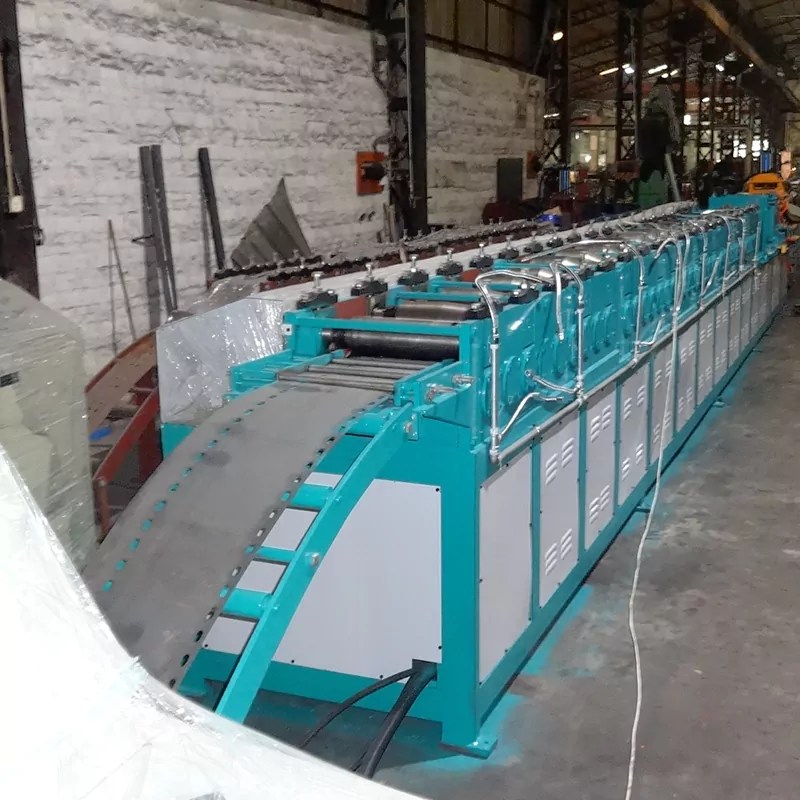

MAIN ROLL FORMING MACHINE

• Adjusting the width by spacer.
• Material thickness         1.8-2.5mm
• Rollersstation            24 groups
• Straightening roller        5 pcs
• Roller material            GCr15
• Roller heat treatment       HRC55-57°
• Roller’s surface finishing poilish treatment
• Roller main shaft diameter  60mm , material : 45# steel
• Roller’s axis              60310
• Pinch wall thickness        30mm
• Transmitt way             gear and chain
• Motor and speed reducer  5 kw x 3sets
• Equip with water cooling system

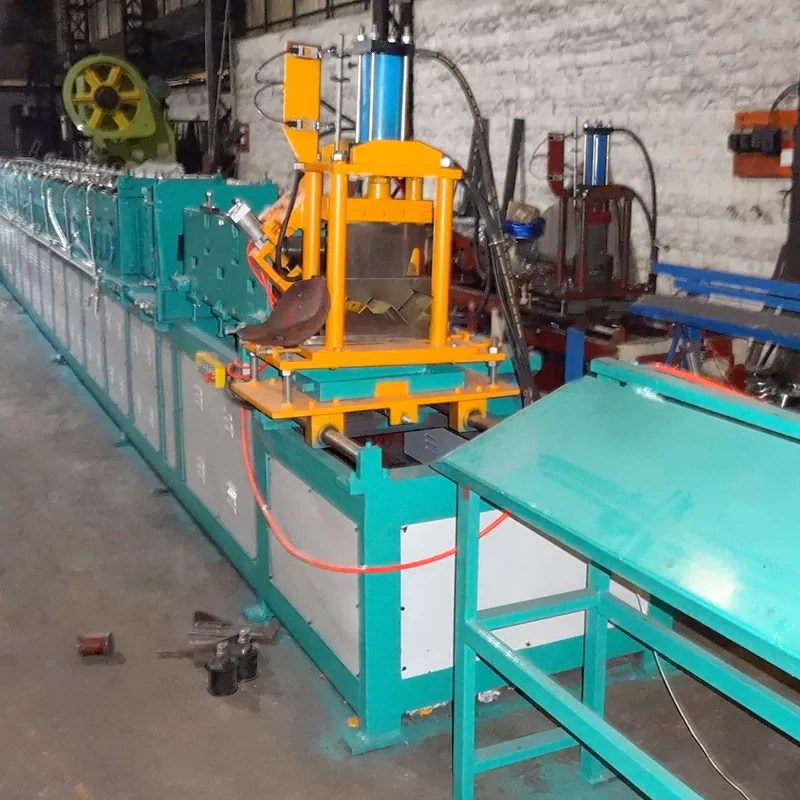

HYDRAULIC CUT OFF

• Hydraulic station              1 set
• Hydraulic station motor         4 kw

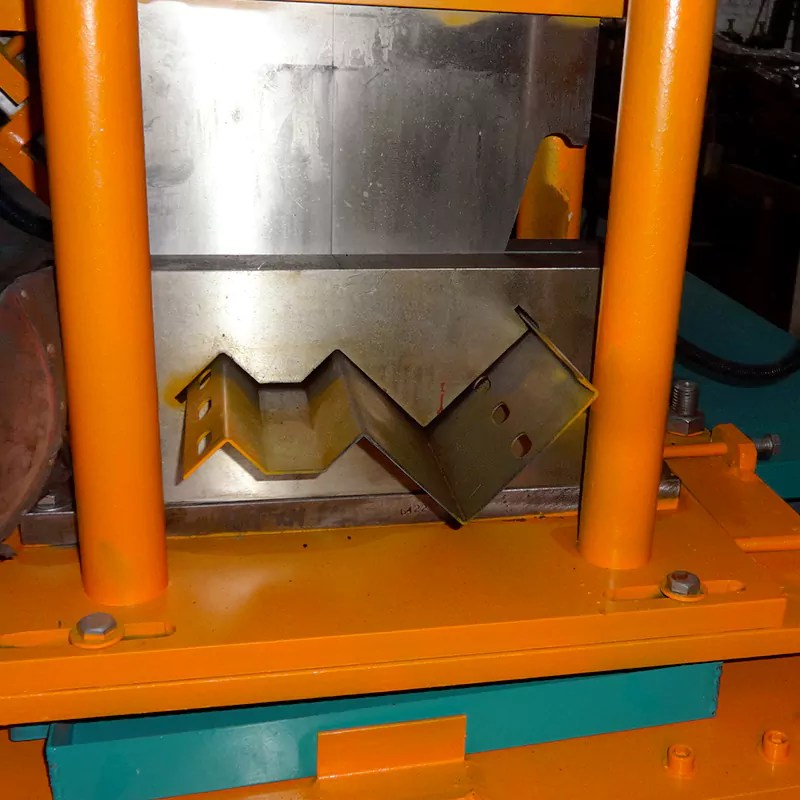

• Cut off mould                 4sets
• Cutting mold material          SKD11
• Treatment hardness            HRC60°-62°
• The machine stop , then cut

• RUN OUT OF TABLE
• Length                     6 meters
• weld byangle steel
• Pneumetic discharge

CONTROL SYSTEMS

• Control system PLC, Touchable Screen (good quality brand)
• Electric parts ain electric parts adopt to good quality brand.
• Length setting by PLC, messuring by encoder
• Speeding adjusting by Transducer.
• The machine stop , then cut
• Power : Customized
