Metal Ceiling U Baffle Roll Former

Product Origin:Guangdong, China
Shipping Port:Huangpu, China
Lead Time:90 Days

Suitable Raw Material Specification

  1. Materials                             under G550Mpa GI
  2. Material thickness                      4~0.45mm
  3. Profile width                           1 5/8”, 2 1/2”, 3 5/8”
  4. Profile height                           30mm
  5. Profile specification                      same as drawing

Producing Process:

Material coil –> Roll forming machine –> Online Punching –> Hydraulic cut off –> finish product Profile –> PLC

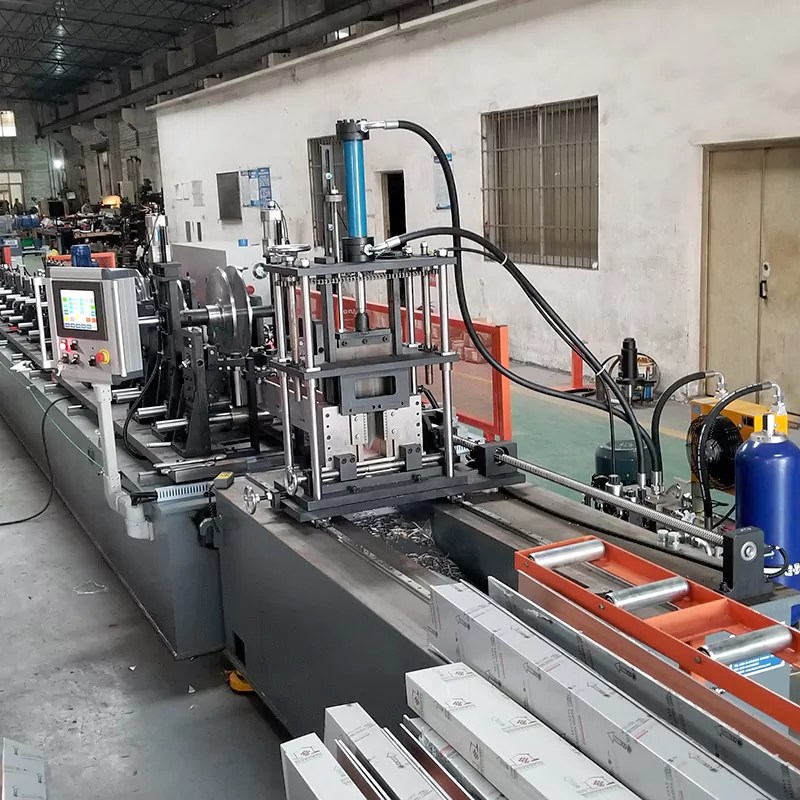

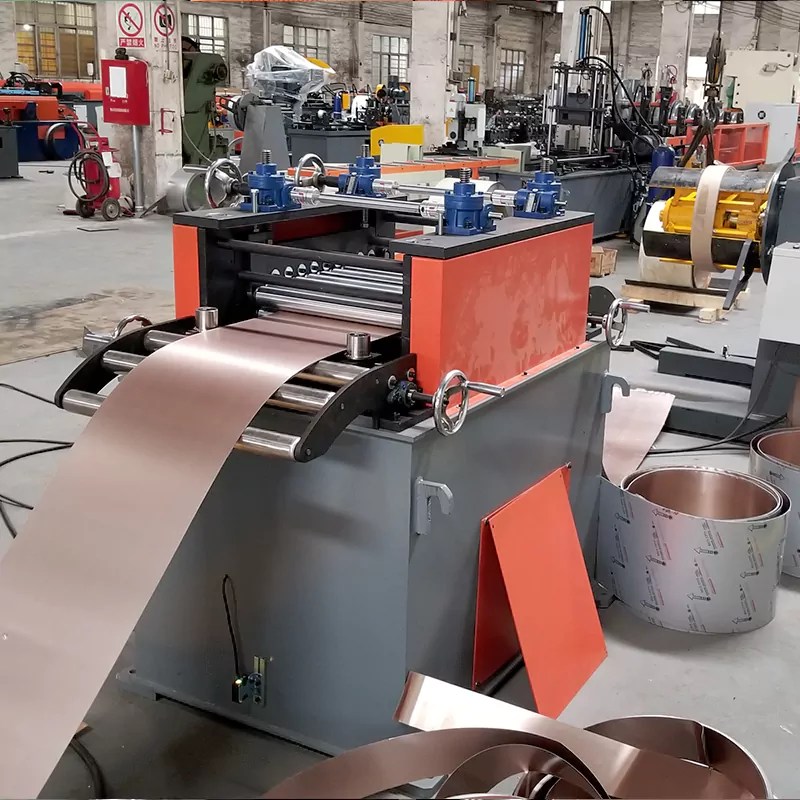

One complete set of production line consist of following units


  1. Loading capacity           3000KGS
  2. Maximum outer diameter     1250mm
  3. Inner diameter              508±30mm
  4. Double decoilers
  5. Manual Expanding

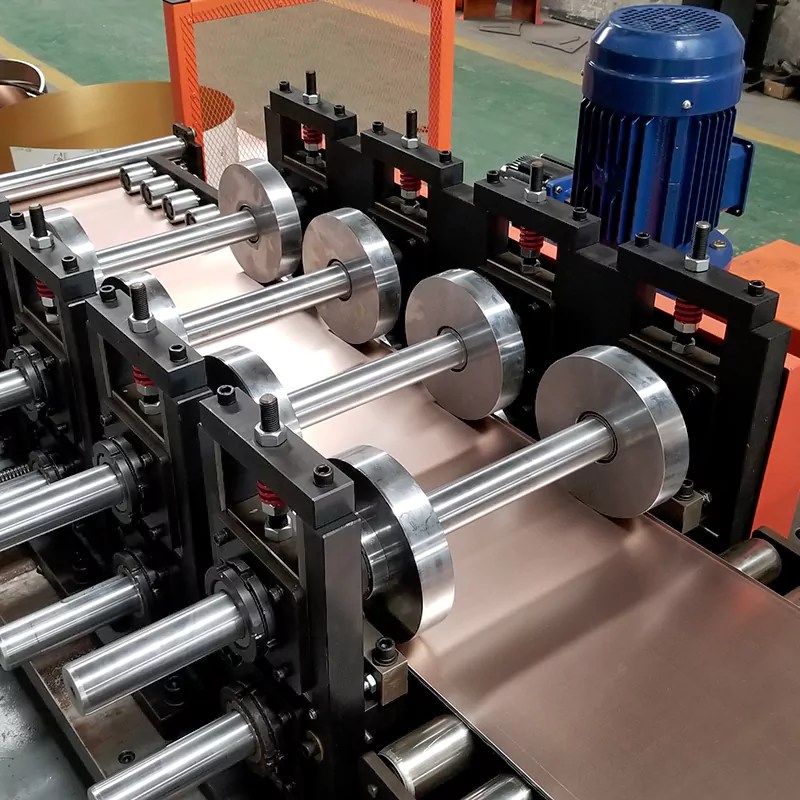

Roll forming machine

  • Automatically adjusting size, setting the size by PLC and touchable screen.
  • Rollers stations14 groups
  • Roller’s material               Cr12mov
  • Roller’s surface                Heat treatment HRC58~60,

finishing, Hard chromium plating

  • Main axis diameter           40Cr, 45mm, thermal refining and finishing
  • Motor power                   15KW, frequency control
  • Forming speed                 0~80m/min, 100 m/min with punching.

Remark: Driven by gear & chain, speed controlled by frequency.

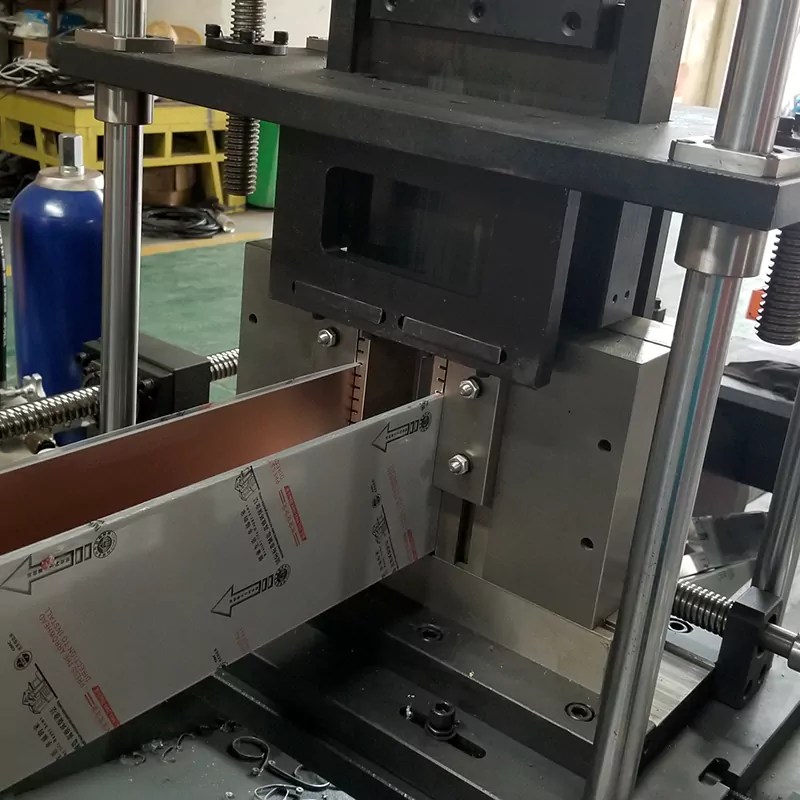

Hydraulic Cut off

  1. Hydraulic station                1set, including: motor, oil pump, magnetic valve, oil cylinde
  2. Hydraulic station motor           9 KW*2 sets
  3. Cutting blade                    6 sets
  4. Cutting blade material              Gr12 steel, hot treatment
  5. Hardness treatment                 HRC 60°~62°
  6. Cutting modeNon-stop cutting.
  7. Driving method: By servo motor and precision planet-gear reducer, driving the precision

Hydraulic system

  • Hydraulic station motor power      7.5KW
  • Energy storage type independent structure
  • Adopt to famous brand of the hydraulic accessories.
  • Equipped with high precision filter and overload protection.

Simple Discharge bracket

  • Length6m

Electric control system

  • Control System: Dual-axis chase motion controller & PLC, Touchable Screen, setting the required work piece in the touchable screen: length and quantity. Rotary encoder to control the length, non-stop cutting/punching.
  • Holes punching: the distance of the holes and holes number could be set  by PLC.
  • Control method: by touchable screen and button.
  • Electric control box adopt to omniseal and forced-air-cooling device.
  • Control system’s power supply adopt to overload protection, electronic control box adopt to aviation plug.
