Mute Guide Track Roll Forming Machine for Shutter Door

Brand:KONIX
Payment:T/T
Product Origin:Guangdong, China
Color:Customized
Shipping Port:Huangpu, China
Lead Time:90 Days

Suitable Raw Material Specification

  1. Materials                             GI, HR, CR, Stainless Steel
  2. Profile specification            customized profile roll forming machine
Producing Process:

Material coil –Feeding guide plate –Rubber — Roll forming machine– Hydraulic cut off – finish Mute Guide Track

layout of roll forming machine

  • One complete set of production line consist of following units

Decoiler
  1. Loading capacity           2000KGS
  2. Maximum outer diameter     1400mm
  • Inner diameter              φ400~450mm
  1. Manual Expanding

roll forming machine decoiler

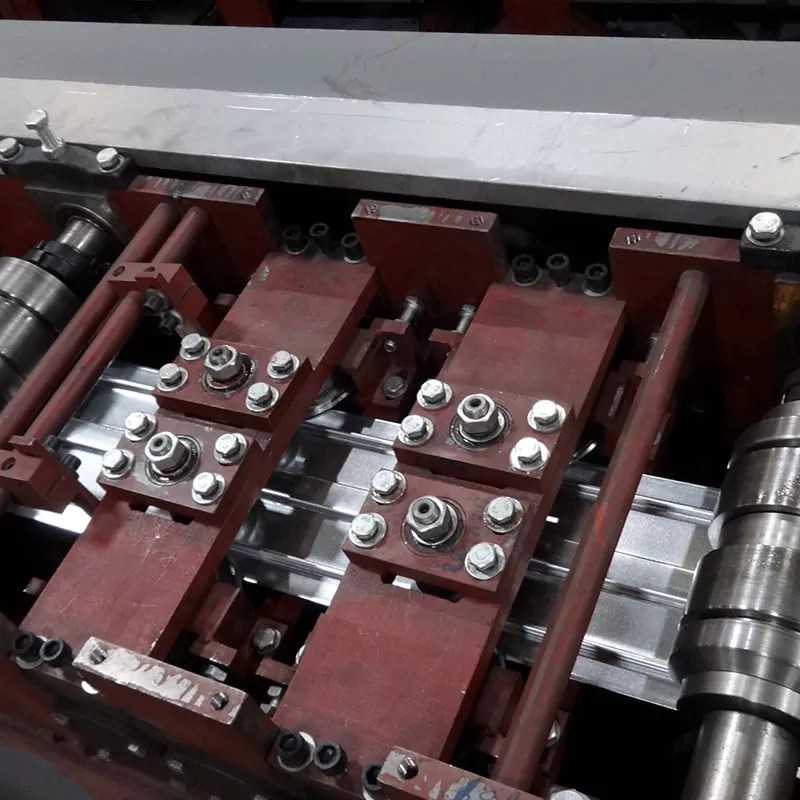

Roll forming machine
  • Rollerstations               18 groups
  • Roller’s material               Gr15 steel
  • Heat treatment                 HRC 55°~57°
  • Main axis diameter            45mm, 45# steel
  • Pinch wall thickness            25mm
  • Main bearing                  60380
  • Motor power                   11KW, 350 speed reducer
  • Forming speed                 8m/min

roll forming machine for making stainless steel rolling shutter door

Hydraulic Cut off
  1. Hydraulic station                1set, including: motor, oil pump,magnetic valve, oil cylinder
  2. Hydraulic station motor           3KW
  3. Cutting blade                    1set
  4. Cutting blade material              Gr12 MOV, heattreatment
  5. Hardness treatment                 HRC 57°~59°
  6. Cutting mode                   cut off with waste
  7. Cutting mode                    stop to cut.
C channel roll forming machine
Simple Discharge bracket / Pneumatica Run Out table (Optional)
  • Welded by angle iron..
  • Quantity                          6m
run out table for roll forming machine
Electric control system
  • Control System                 PLC and touchable screen
  • Electric control box adopt to omniseal and forced-air-cooling device.
  • Control system’s power supply adopt to overload protection, electronic control box adopt to aviation plug.

eletric control panel for metal profile cold roll forming machine

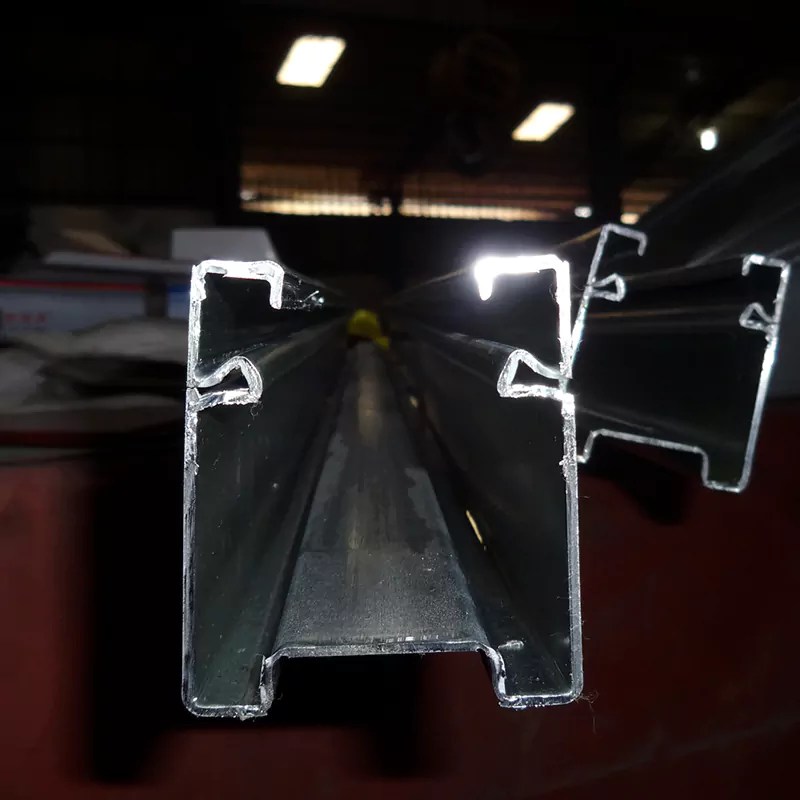

Finished Track /Roller shutter door guide rail (Mute)

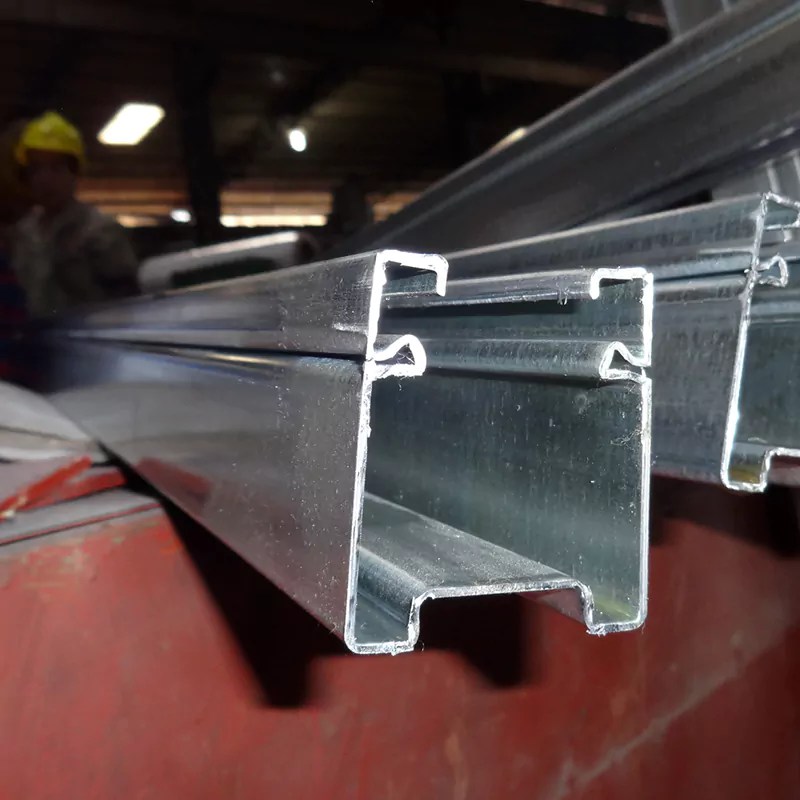

TRACK ROLL FORMING MACHINE factory price(MUTE)



roller shutter TRACK ROLL FORMING MACHINE(MUTE)

Relative roll forming machines:

Mute Guide Track Roll Forming Machine for Shutter Door

Rolling Door Guide Rail Roll Forming Machine

Rolling shutter door roll forming machine

Shutter Door Bottom Beam Roll Former

Stainless steel rolling shutter door roll former machine
