Producing Process:

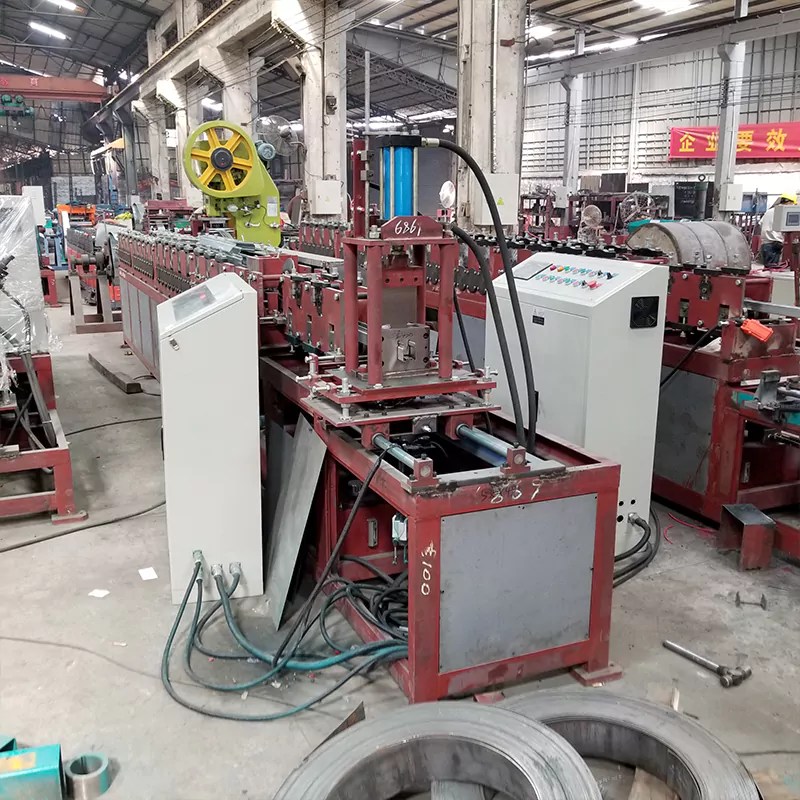

Material coil –> Feeding guide plate –> Roll forming machine–> Hydraulic cut off –> finish rolling door guide rail
- One complete set of production line consist of following units
Decoiler
- Decoiler is to load and discharging the steel coil.
- Different loading capacity are available to choose acoording to different requirements.

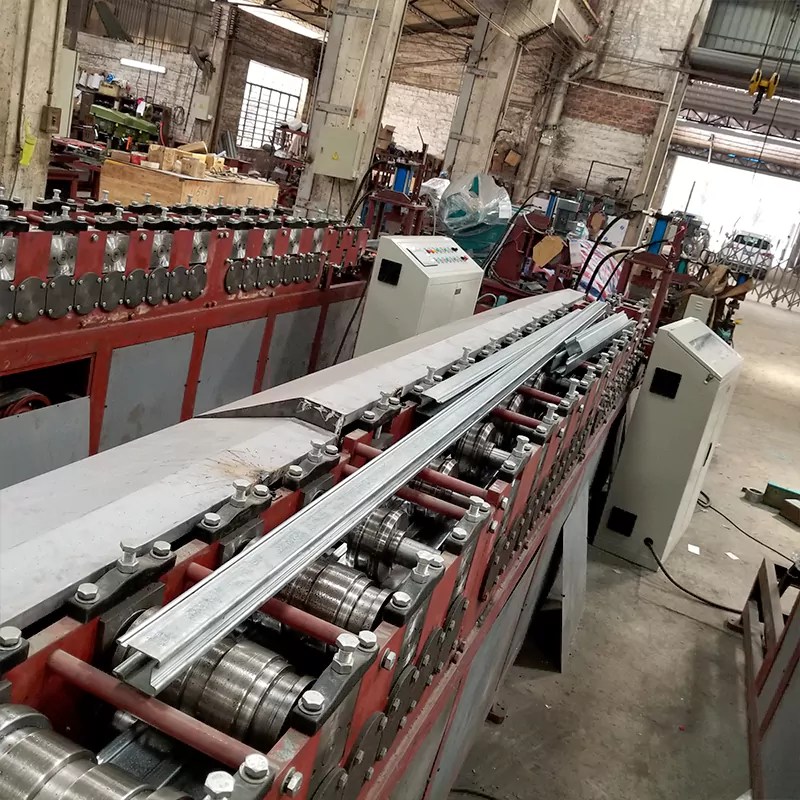

Roll forming machine
- Rollerstations 18 groups
- Roller’s material Gr15 steel
- Heat treatment HRC 55°~57°
- Main axis diameter 45mm, 45# steel
- Pinch wall thickness 25mm
- Main bearing 60380
- Motor power 11KW, 350 speed reducer
- Forming speed 8m/min

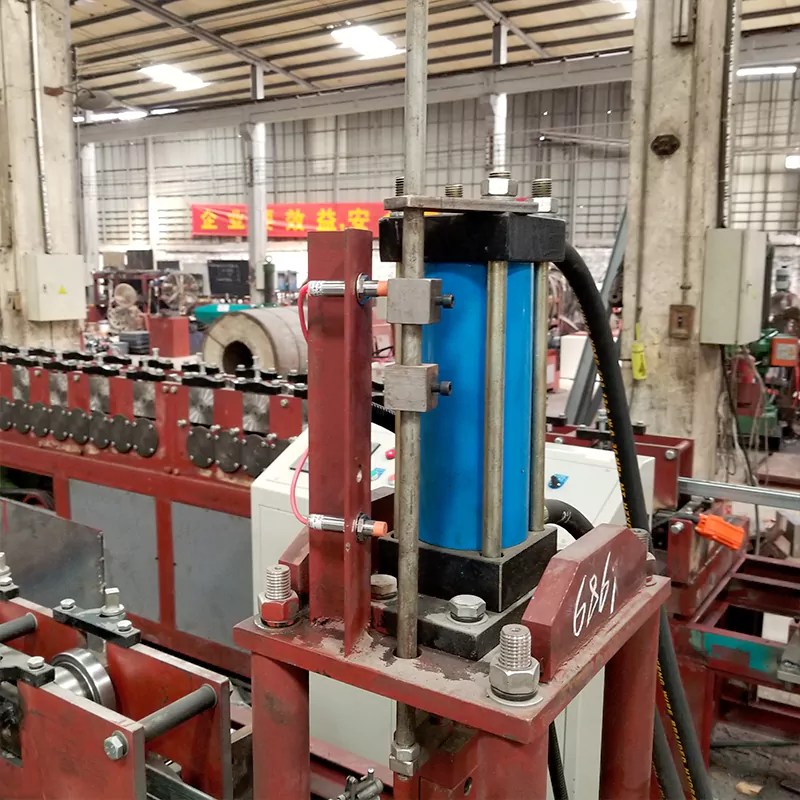

Hydraulic Cut off
- Hydraulic station 1set, including: motor, oil pump,
- magnetic valve, oil cylinder
- Hydraulic station motor 3KW

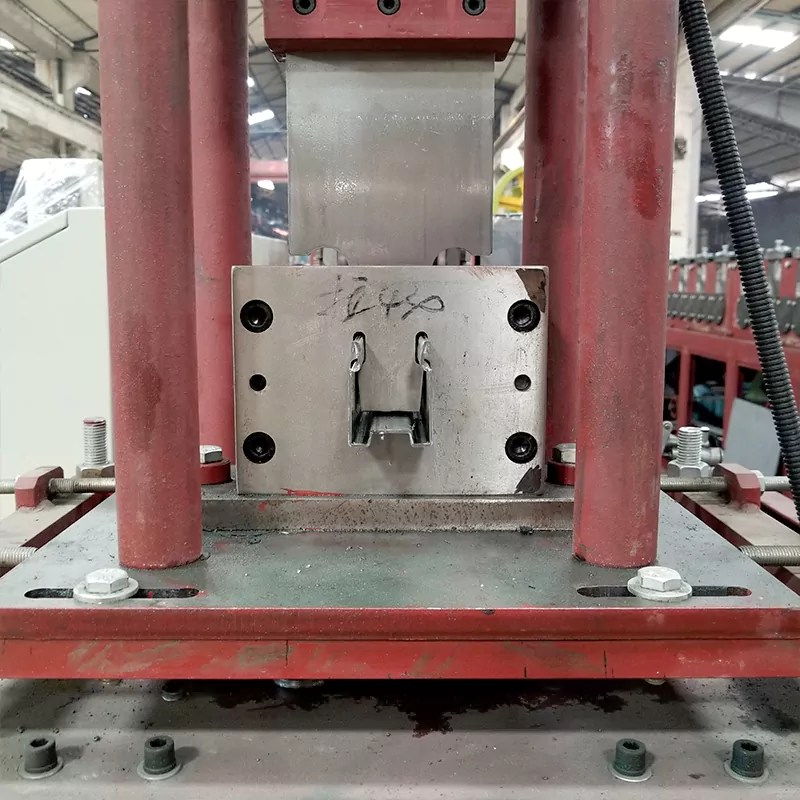

- Cutting blade 1set
- Cutting blade material Gr12 MOV, heattreatment
- Hardness treatment HRC 57°~59°
- Cutting mode cut off with wasteCutting mode
Simple Discharge bracket
- Welded by angle iron..
- Quantity 6m
Electric control system
- Control system PLC, Touchable Screen (good quality brand)
- Electric parts ain electric parts adopt to good quality brand.
- Length setting by PLC, messuring by encoder
- Speeding adjusting by Transducer.
- Power : Customized
