Rolling shutter door roll forming machine

Rolling shutter door roll forming machine

This rolling shutter door roll forming machine processes metal coils into shutter slats through cold roll forming. It features PLC control and hydraulic cutting for automated operation, while hardened rollers ensure stable forming precision. The finished slats are widely applied to fire-resistant rolling shutters, and they also suit commercial and industrial rolling door systems. Thus, it serves as a reliable production choice for door manufacturers.

Suitable Raw Material Specification

1. Materials                             under G245 Mpa PPGI
2. Material thickness                  1.0mm
3. Profile width                           40mm
4. Profile height                           54mm

Producing Process

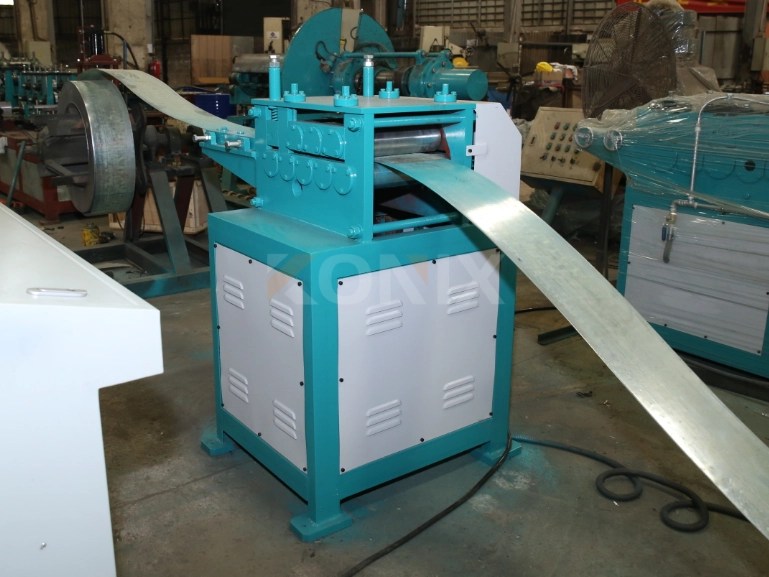

Material coil –Feeding guide plate –Roll forming machine– Hydraulic cut off – finish roller shutter slat

• One complete set of production line consist of following units

Technical Parameter

Decoiler

1. Loading capacity           2000KGS
2. Maximum outer diameter     1400mm
3. Inner diameter              φ400~450mm
4. Manual Expanding

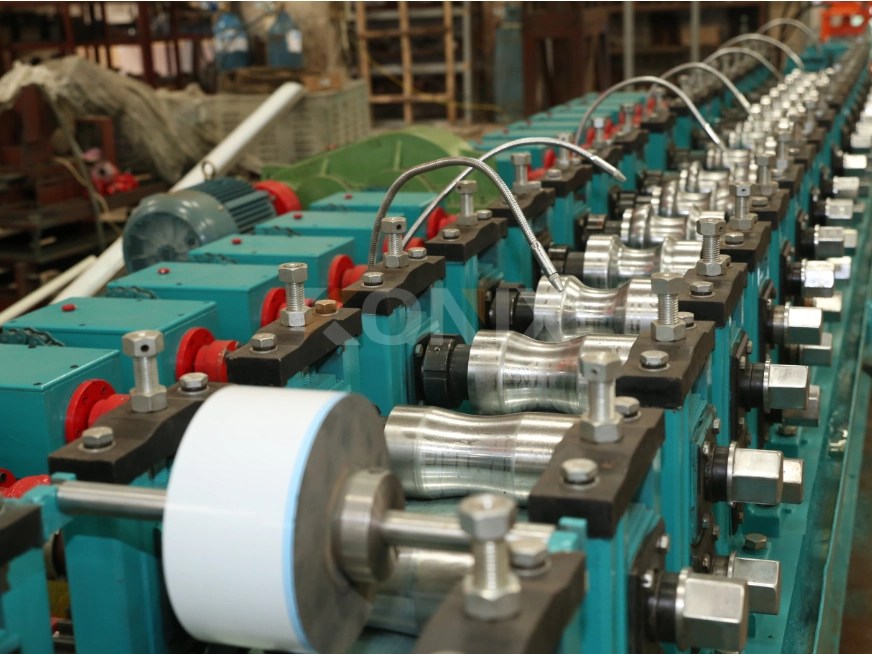

Roll forming machine

• Rollerstations               18 groups
• Forming speed                 8m/min
• Roller’s material               Gr15 steel
• Heat treatment                 HRC 55°~57°
• Main axis diameter            45mm, 45# steel
• Pinch wall thickness            25mm
• Main bearing                  60380
• Motor power                   11KW, 350 speed reducer

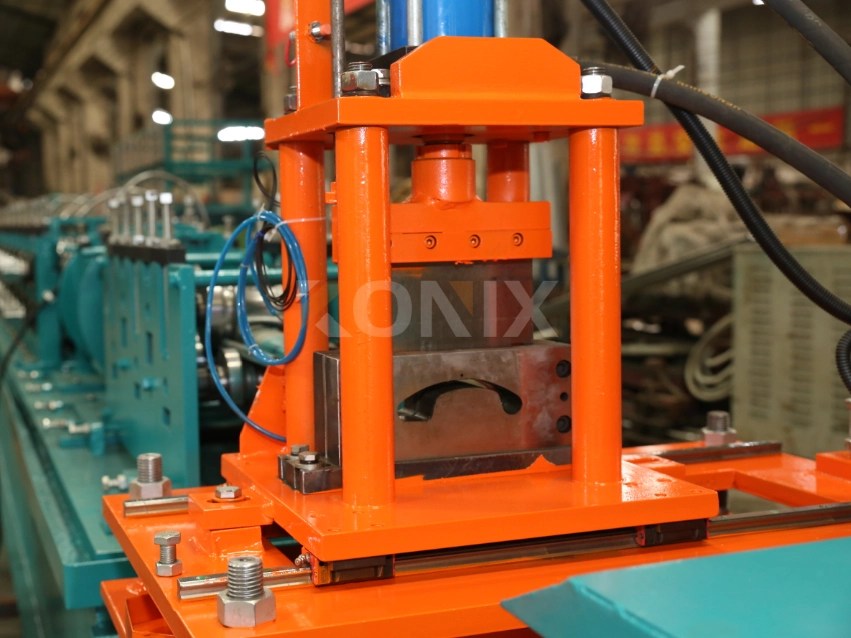

Hydraulic Cut off

1. Hydraulic station                1set, including: motor, oil pump, magnetic valve, oil cylinder
2. Station motor           3KW
3. Cutting blade                             1set
4. Cutting blade material              Gr12 MOV, heattreatment
5. Hardness treatment                 HRC 57°~59°
6. Cutting mode                   cut off with scrap
7. Cutting mode                    stop to cut.

Simple Discharge bracket

• Welded by angle iron..
• Quantity                          6m

Electric control system

• Control System                     PLC and Touchable Screen
• Main Electronic Components
• Length Measurement                 by Encoder.
• Electric control box adopt to omniseal and forced-air-cooling device.
• Control system’s power supply adopt to overload protection, electronic control box adopt to aviation plug.

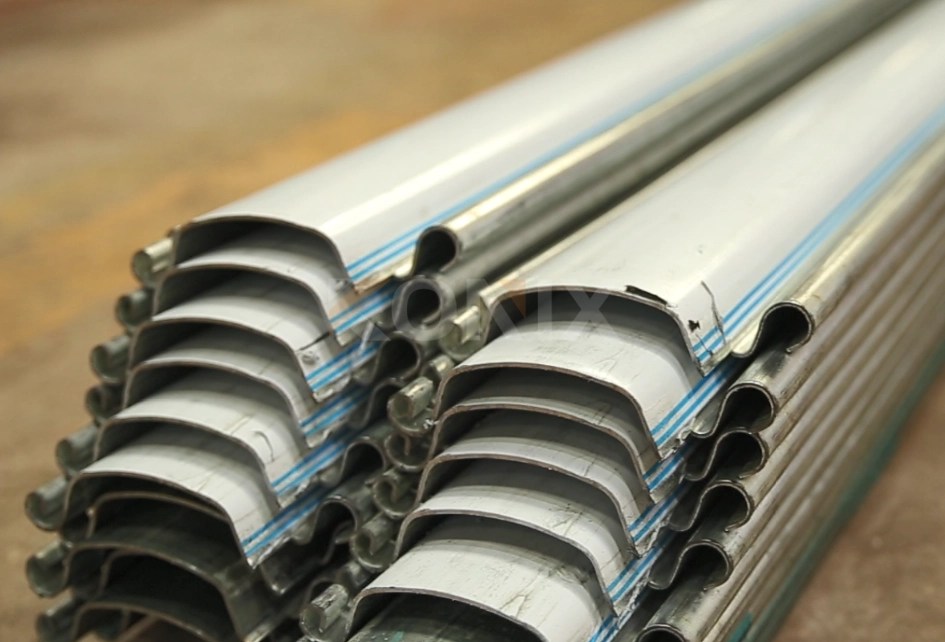

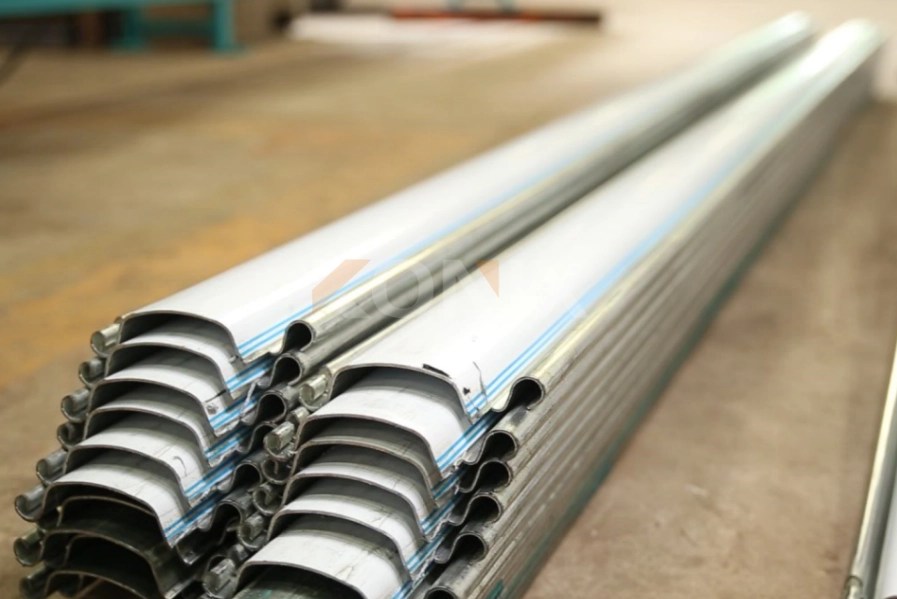

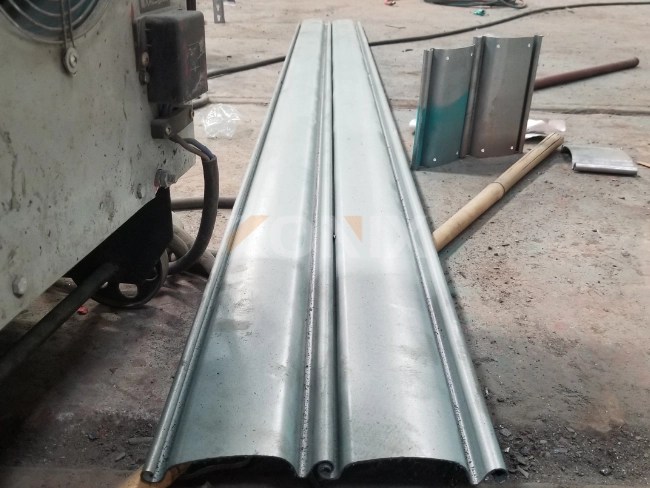

Finished Rolling Shutter Door Slats
