Stainless steel rolling shutter door roll former machine

Brand:KONIX
Payment:T/T
Product Origin:Guangdong, China
Color:Customized
Shipping Port:Huangpu, China
Lead Time:90 Days

Stainless steel in an appropriate grade provides the best long-term solution in salt or corrosive environments, as well as in food production and processing, and for heat-resistant and wind-resistant applications.

How is the stainless steel roller shutter made? It is made using a stainless steel roller shutter door roll forming machine.

The stainless steel shutter door roll forming machine consists of a decoiler, leveler, hydraulic punching unit, roll forming machine, hydraulic cut-to-length device, run-out table, and electric control panel.

PECIFICATION:

  • Suitable material            HCR Coil / Carbon Steel Coil, GI Coil, Stainless Steel
  • Complete line working speed   10m/min
PRODUCTION FLOW
  • Steel Coil –> Straightening Machine –>Hydraulic Punching Machine –> Roll Forming Machine –> Hydraulic Cut Off –> Run Out Table –> Finished Stainless Rolling Shutter Door Slat

Working flow of roll forming machine

DECOILER
  • With prevent frame
  • Coils outer diameters        1600mm
  • Coils inner diameters        460-520mm
  • Coils width                500mm
  • Coils weight               3000kgs
  • Manual way to tighten the coils
  • With manual brake device

roll forming machine decoiler

LEVELING MACHINE
  • Feeding material width       400mm
  • Feeding material thickness    0 mm
  • Rollers quantity             11pcs
  • Roller material              GCr 15steel
  • Heat treatment hardness      HRC55°-57°
  • Motor power                3 KW
  • Transmitt by chain and gear

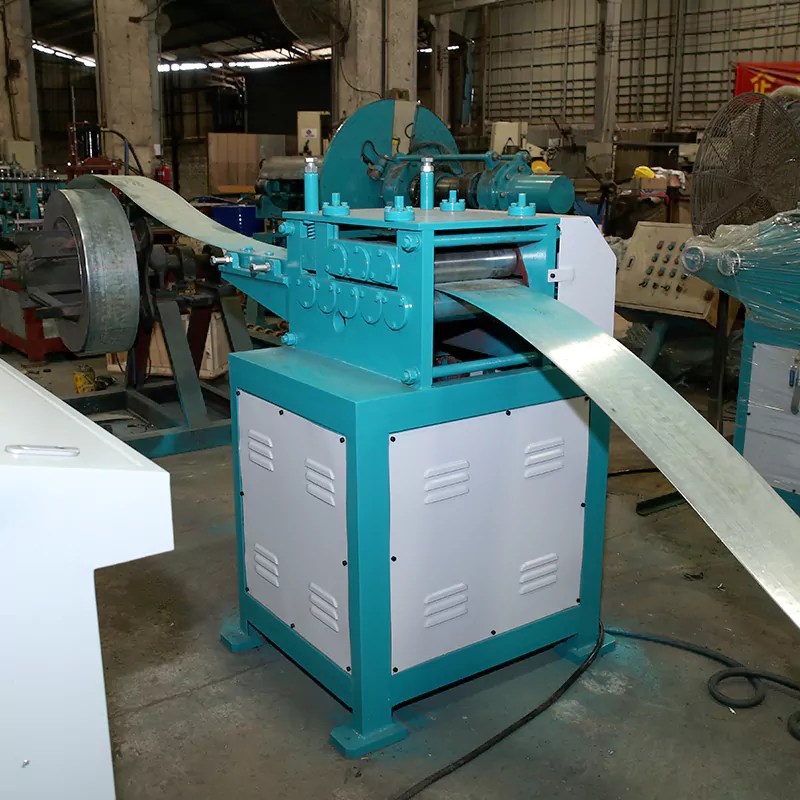

roll forming machine leveler for making stainless steel rolling shutter door
MATERIAL FEEDER
  • Feeder material width           400mm
  • Feeder material thickness        2.5mm
  • Rollers quantity                4pcs
  • Roller material                 GCr15steel
  • Roller heat treatment hardness   HRC55-57
  • Servo motor power             1.8KW
  • Transmitt by gear

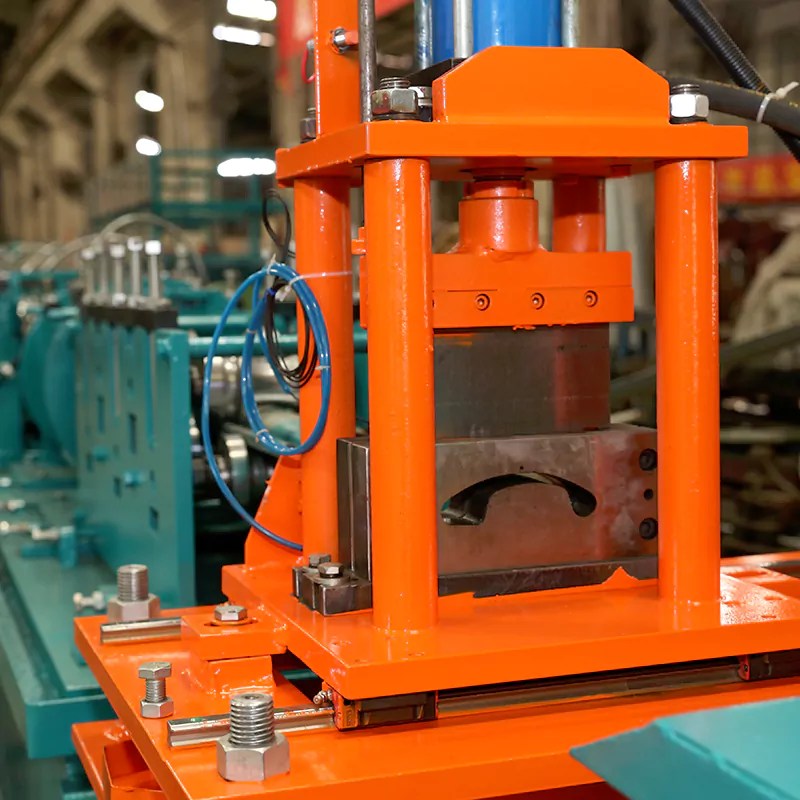

Hydraulic Punching Machine

  • Working pressure              80Ton(air clutch )
  • Working times                 60times/min
  • Punching moulds               3 sets

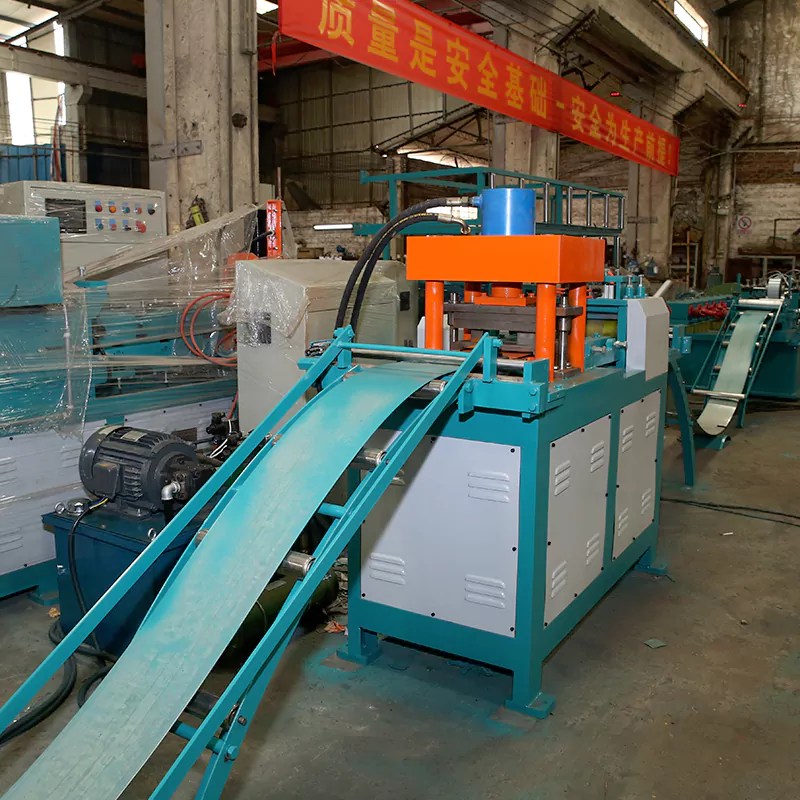

roll forming machine for making stainless steel rolling shutter door

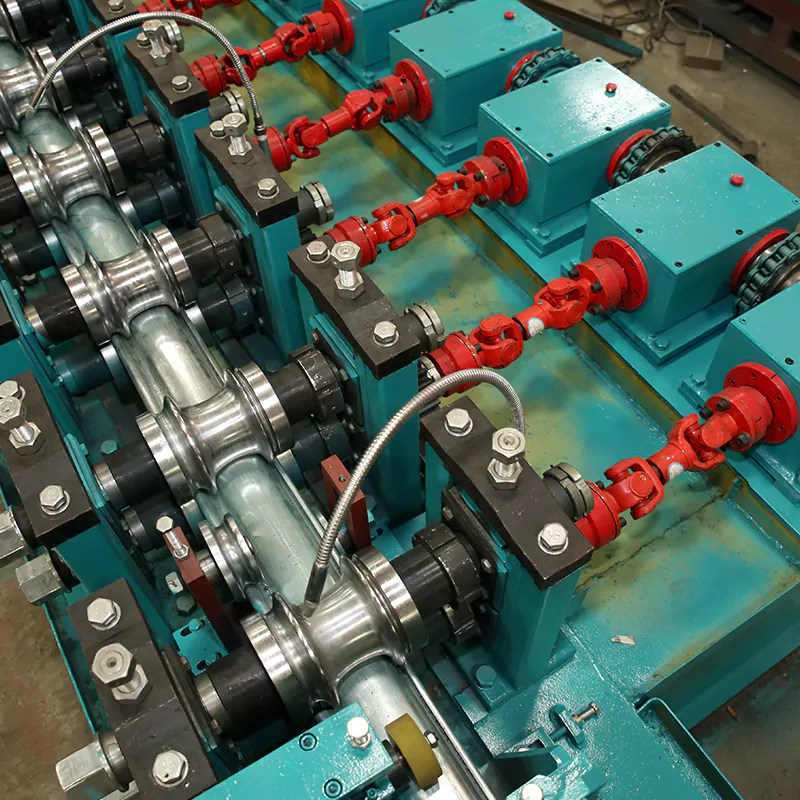

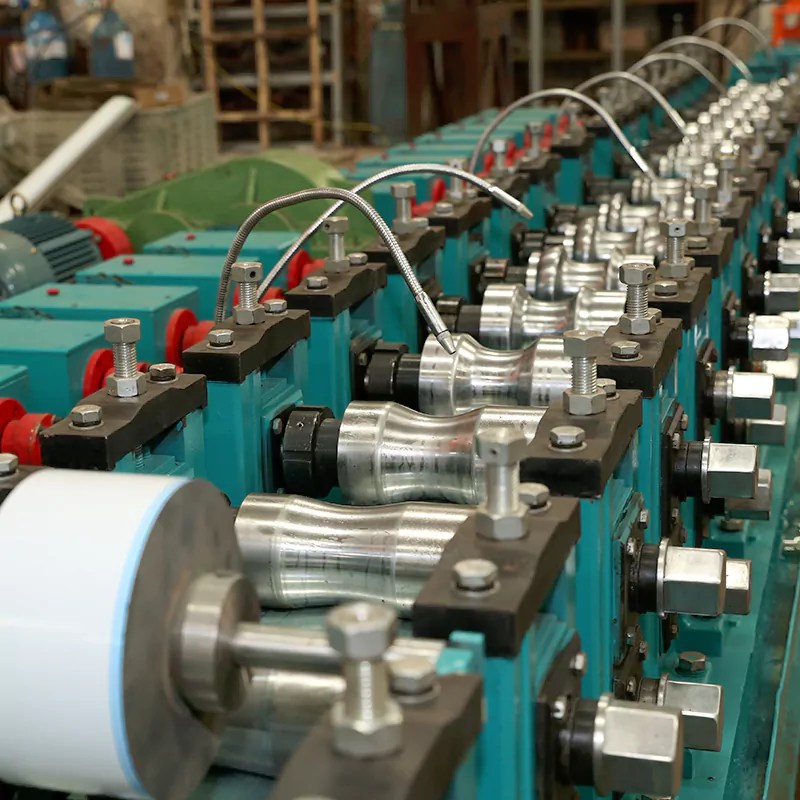

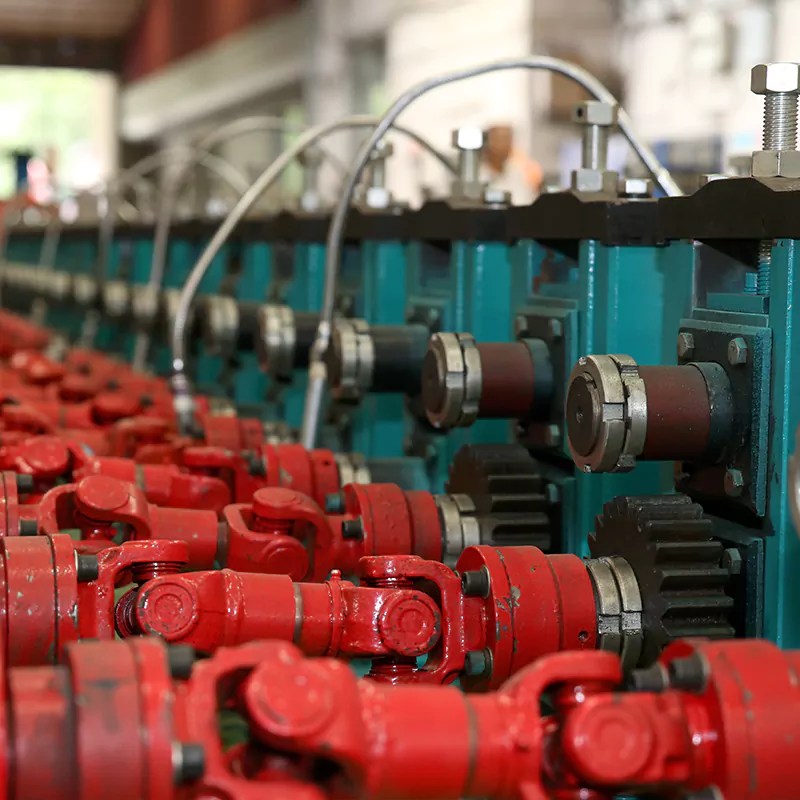

MAIN ROLL FORMING MACHINE

  • Adjusting the width by spacer.
  • Material thickness         1.8-2.5mm
  • Rollersstation            24 groups
  • Straightening roller        5 pcs
  • Roller material            GCr15
  • Roller heat treatment       HRC55-57°
  • Roller’s surface finishing poilish treatment
  • Roller main shaft diameter  60mm , material : 45# steel
  • Roller’s axis              60310
  • Pinch wall thickness        30mm
  • Transmitt way             gear and chain
  • Motor and speed reducer  5 kw x 3sets
  • Equip with water cooling system





HYDRAULIC CUT OFF

  • Hydraulic station              1 set
  • Hydraulic station motor         4 kw
  • Cutting mold material          SKD11
  • Treatment hardness            HRC60°-62°

roll forming machine for making stainless steel rolling shutter door (12)

RUN OUT OF TABLE
  • Length                     6 meters
  • weld byangle steel
  • Pneumetic discharge

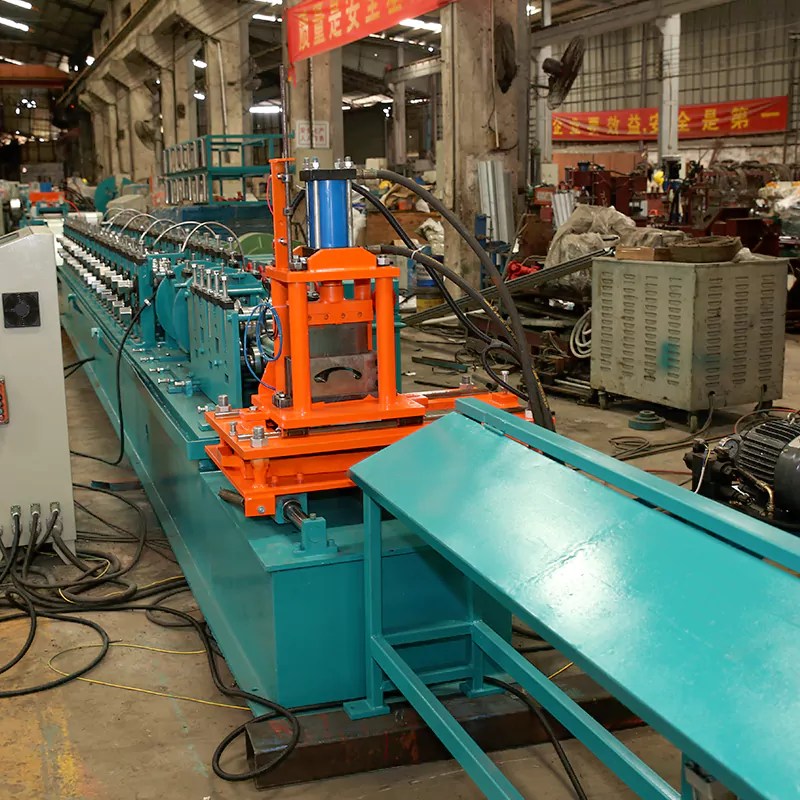

roll forming machine for making stainless steel rolling shutter door (6)

CONTROL SYSTEMS

  • Control system PLC, Touchable Screen (good quality brand)
  • Electric parts ain electric parts adopt to good quality brand.
  • Length setting by PLC, messuring by encoder
  • Speeding adjusting by Transducer.
  • The machine stop , then cut
  • Power : Customized

eletric control panel for metal profile cold roll forming machine

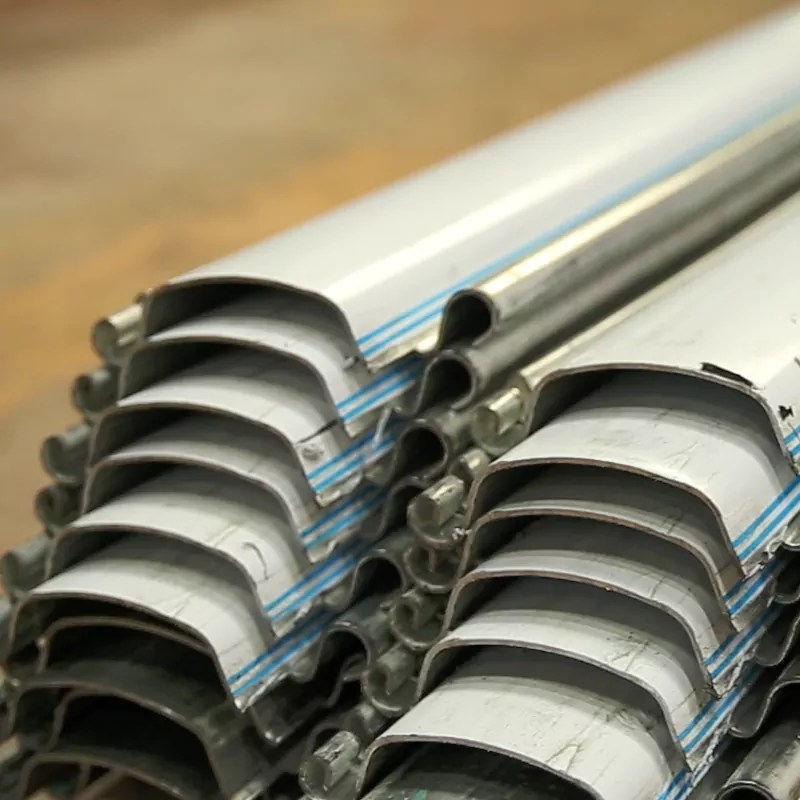

Finished Stainless Steel roller shutter door Slat:

stainless steel rolling shutter roll forming machine
