Storage Upright Rack Omega Profile Roll Forming Machine introduction as below:
SPECIFICATION:
| Suitable Material: | HCR Coil / Carbon Steel Coil, GI Coil |
| Material Thickness: | 8~2.5mm |
| Profile: | 90/100/120*70mm |
| Complete Line Working Speed: | 2~5m/min |
The layout of KONIX Omega Pallet Rack Upright Roll Forming Machine
Sample of the Finished Storage Racking System: Upright /Boxed Beam /Bracket Connector- PRODUCTION FLOW
- Steel Coil àStraightening Machine àPunching Machine à Roll Forming Machine à Hydraulic Cut Off à Run Out Table à Finished Upright Racking à PLC Control
- DECOILER
- With prevent frame
- Coils outer diameters 1600mm
- Coils inner diameters 460-520mm
- Coils width 500mm
- Coils weight 3000kgs
- Manual way to tighten the coils
- With manual brake device
- LEVELING MACHINE
- Feeding material width 400mm
- Feeding material thickness 0 mm
- Rollers quantity 11pcs
- Roller material GCr 15steel
- Heat treatment hardness HRC55°-57°
- Motor power 3 KW
- Transmitt by chain and gear
- MATERIAL FEEDER
- Feeder material width 400mm
- Feeder material thickness 2.5mm
- Rollers quantity 4pcs
- Roller material GCr15steel
- Roller heat treatment hardness HRC55-57
- Servo motor power 1.8KW
- Transmitt by gear
- POWER PRESSJC23-80
- Working pressure 80Ton(brand: Yangli, air clutch )
- Working times 60times/min
- Punching moulds 3 sets (90mm, 100mm, 120mm)

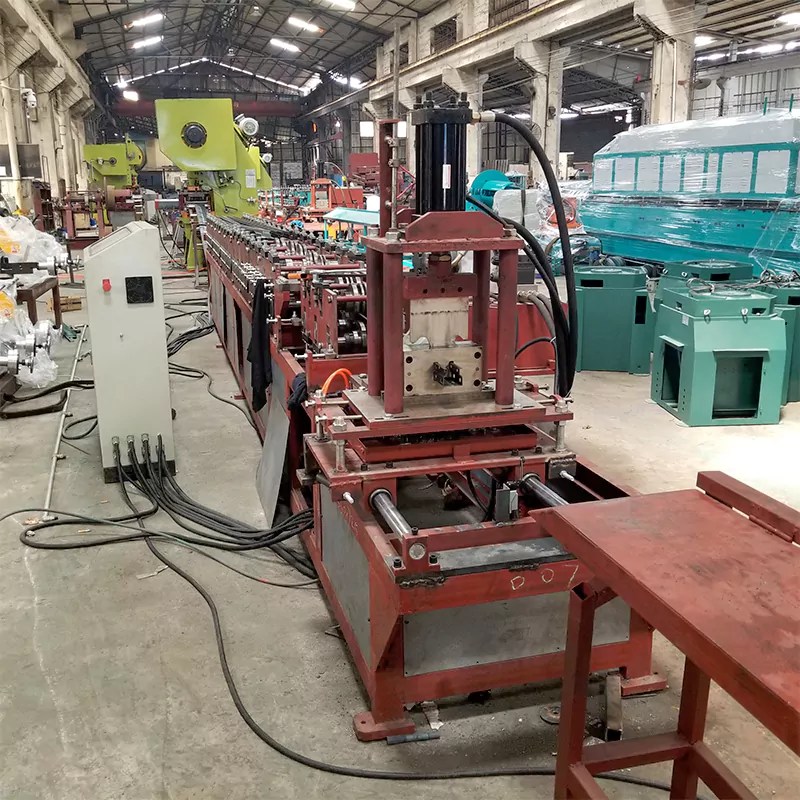

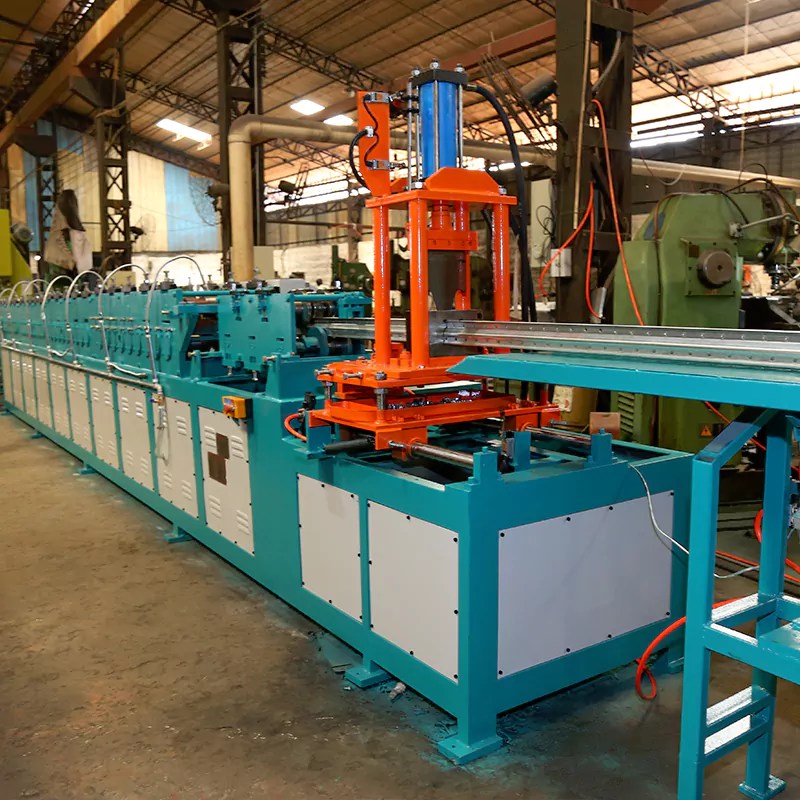

Punching die /punching mould- MAIN ROLL FORMING MACHINE
- Adjusting the width by spacer.
- Material thickness 1.8-2.5mm
- Rollersstation 24 groups
- Straightening roller 5 pcs
- Roller material GCr15
- Roller heat treatment HRC55-57°
- Roller’s surface finishing poilish treatment
- Roller main shaft diameter 60mm , material : 45# steel
- Roller’s axis 60310
- Pinch wall thickness 30mm
- Transmitt way gear and chain
- Motor and speed reducer 5 kw x 3sets
- Equip with water cooling system

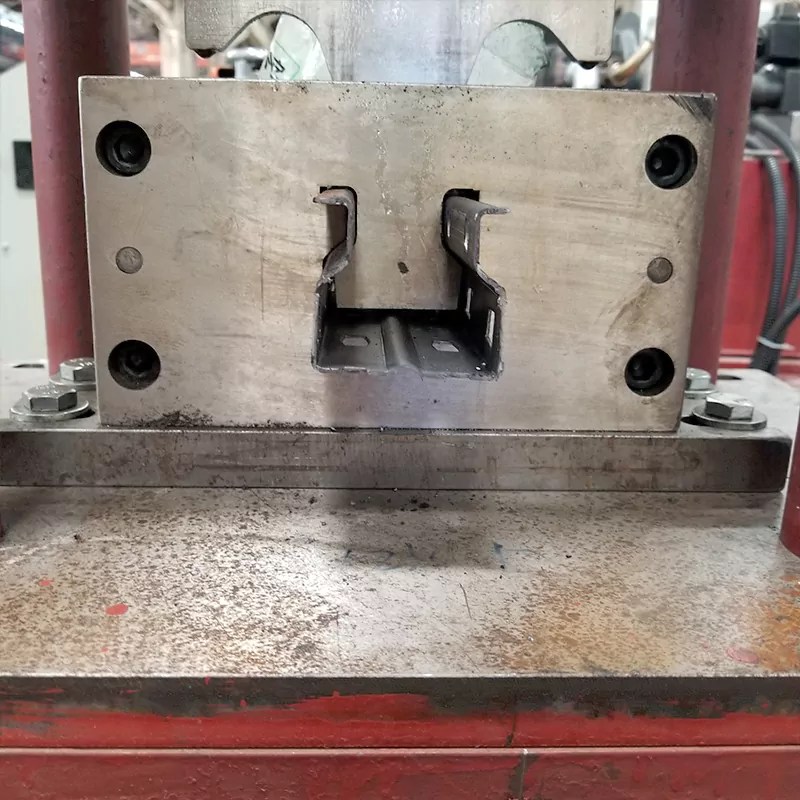

- HYDRAULIC CUT OFF
- Hydraulic station 1 set
- Hydraulic station motor 4 kw
- Cut off mould 4sets
- Cutting mold material SKD11
- Treatment hardness HRC60°-62°
- The machine stop , then cut
- RUN OUT OF TABLE
- Length 6 meters
- weld byangle steel
- Pneumetic discharge
- CONTROL SYSTEMS
- Control system MitsubishiPLC, Touchable Screen (made in Japan)
- Electric partsain electric parts adopt to Schneider, Shilin(France, Taiwan)
- Length setting by PLC, messuring by encoder (OMRON, Japan)
- Speeding adjusting by Toshiba Transducer (made in Japan)
- The machine stop and then cut.
- Power : Customized
Eletric control box for omega upright rack rollformer
